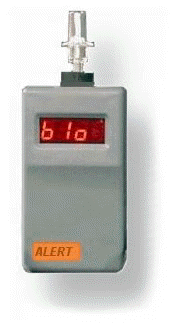

ALERT J4X
Professional
PRODUCT
DISCONTINUED 06-01-2010
Mouthpieces Still Available (See Below)
Alternative/Comparable Model:
AccuCell AL9000 Fuel Cell Breathalyzer
The
ALERT J4X Professional evidentiary
model alcohol breathalyzer
features the latest technology in high quality
electrochemical fuel cells and was designed specifically for law enforcement,
department of corrections, government compliance programs, probations and
commercial or personal use applications requiring the highest standards in
accuracy testing rates.
The
ALERT J4X complies with the testing standards for accuracy established by the
U.S. Department of Transportation. The ALERT J4X is the newest, most
advanced portable alcohol breath analysis system available with sophisticated
self contained computer digital electronics and precision fuel cell accuracy.
The ALERT J4X employs an advanced 16 bit A/D
converter microprocessor chip and integrated gas
sensor to instantly display
equivalent Blood Alcohol Content (BAC) on a large, backlit
digital display.
|

|
INTENDED USE
The ALERT J4X
Professional was developed and manufactured to provide
reliable, fast and highly accurate alcohol breath analysis in a compact,
portable and user friendly electronic device. Constructed from the highest
quality components available, the ALERT J4X
is intended for heavy commercial and law enforcement use
without compromising sensitivity and accuracy. Advanced power circuitry and
automated sample processing allows for up to 100 test procedures from its
rechargeable NiCd battery power pack. The oversized LCD digital display utilizes
simple visual prompts to show internal self diagnostics and recalibration, test
progress and test results. Audible tones prompt for test start then signal
breath sampling progress and test completion. The unit's electronic sensor
automatically calculates the correct breath sample amount required and will
report a test error for under blows thus eliminating test subject sample
manipulation. Additionally, The ALERT 4JX model includes 5 specially designed
non-disposable one-way mouthpieces that prevent subject manipulation of breath
sampling by "blow back" and insuring proper breath sampling. Key on chip functions include self diagnostic checks for
calibration and accuracy, automatic recalibration, sample volume to
alcohol content logarithm and real time clock self adjustment. The ALERT J4X is
intended for law enforcement field use and any other application, including
personal use, requiring rapid and evidentiary accurate alcohol breath analysis.
SPECIFICATIONS
Extremely easy to use,
with most test operations completely automated,
the ALERT J4X
Professional is the model of choice for anyone serious about
alcohol use, abuse, detection and prevention. Highly sensitive, with a
detection range of .000 to .400 % BAC and field accuracy rate of
± .005 @
.100 BAC, the ALERT J4X complies with the testing standards for accuracy
established by the U.S. Department of Transportation and other regulating
authorities. The ALERT J4X Professional model is also ideally suited for zero
tolerance alcohol testing programs where even the smallest amount of system
alcohol can be detected. Key specifications and features of the ALERT J4X
Professional model are as follows:
• Alcohol specific,
semi-conductor sensor
• 16 bit microprocessor and converter
• Advanced 4 digit bright LCD display
• Programmed internal self-diagnostics
• Automatic sensor calibration self adjusting
• Automatic sample volume detection
• Visual and Audible test prompts
• Instant response time
• 45 second maximum recovery time
• Detection Range .000 to .400 BAC
• Accuracy at ±
.005BAC to .100BAC and ± 5% above .100. |
 |
• Calculation logarithm % BAC standard
• Ambient Temperature Range
0-170 °F
(-20-70 °C)
• Pocket sized 6 x 3.2
x 1.4 inches (15 x
8.8 x 3.5
cm)
• Weight 9 ounces (250 grams)
• One-way round mouthpieces
• Fast, simple operation
• Automatic calibration
• Rechargeable NiCd Battery pack
• 100 test capacity on full battery charge
• 25 second automatic power shut off
• One year factory warranty; parts and labor. |
 |
Operation
is fast, with an instant response to negative
and positive tests, and a maximum
45 second recovery time.
Microprocessor monitoring of breath flow, unique one-way flow
mouthpiece design, and an alcohol specific semi-conductor
fuel cell sensor combine to automatically assure the accuracy of
alcohol breath testing and analysis.
One button operation, auto calibration, shirt-pocket size, and a host of
exclusive convenience features make the
ALERT J4X
Professional model stand alone in
field sobriety testing and analysis. The large graphic LCD display and high
powered internal software give the operator
visual and audible prompts and error messages
minimizing operator error
and simplifying the test procedure.
This evidentiary quality breath analyzer is
recommended for "on the spot" testing whenever alcohol consumption is planned or
intoxication is suspected. The
ALERT J4X should provide accurate readings indefinitely as long
as the microprocessor and sensor
cell are not internally damaged.
For additional information on technology method and specificity expectation see
Technology and Accuracy. |
 |
QUALITY

The
ALERT J4X housing is constructed of commercial
grade, high impact ABS polymers with a scratch resistant high density crystal
acrylic display providing superior protection to the internal
microprocessor and computer circuitry. Each unit comes in a hard shell,
protective storage and carrying case for mobile and field use. Electronics
are shock resistant and solid state. Mouthpieces are specially designed to
provide one-way breath flow only thereby eliminating test subject sample
manipulation by suck back or under flow. Given simple routine maintenance,
the unit should provide unlimited service in a commercial use
environment.
AVAILABILITY

 |
One-way Flow Mouthpiece |
Each
ALERT J4X professional
unit comes with a high impact, molded storage case, rechargeable NiCad internal
battery pack, AC charging adapter, operation and calibration manual, calibration
adapter, and five
(5) one-way flow mouthpieces. Extra mouthpieces are available in bulk separately. Mouthpieces are
high grade plastic and
disposable however they can be re-used if washed in hot water between uses in
personal use or lower volume testing applications. Additionally, the
ALERT J4X unit
must be used only with its specially designed mouthpiece or damage to the fuel
cell sensor could occur along with inaccurate test results. Failure to use
ALERT J4X
mouthpieces in operation of the unit may void the manufacturers warranty.
Description
|
Packaging
|
Sale Unit
|
Cost
|
|
ALERT J4X
Pro Evidentiary Breathalyzer
|
Molded Case
|
One (1) Unit
|
DISCONTINUED
|
 |
|
|
Three (3) Units
|
DISCONTINUED
|
 |
Alert J4X One-Way Flow mouthpieces |
Poly Each |
25 pack
|
$15.00
|

|
|
|
100 pack |
$45.00 |
 |
|
|
250 pack |
$90.00 |
 |
*If the
order buttons are absent or inoperable, please use the
pricing overview page to order. |
For
purchases of Five (5) units or more please contact us by e-mail
Customer Service
*Note: The ALERT J4X cannot be
shipped to a PO Box address


|
