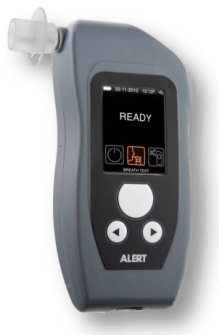

ALERT J5 II
Professional w/Wireless Thermal Printer Option
Evidentiary
Accurate, Law Enforcement, Electronic Platinum Fuel Cell Alcohol
Breath AnalyzerView
Product Manual: ALERT J5 II Operating Manual

The
ALERT J5 II II Professional evidentiary
model alcohol breathalyzer with
wireless
printer option
features the newest technology in high quality platinum
electrochemical fuel cells and was designed specifically for law enforcement,
department of corrections, government compliance programs, probations and
commercial or personal use applications requiring the highest standards in
accuracy testing rates.
The
ALERT J5 II II features a menu driven LCD display with memory recall of the last 10
test results.
The ALERT J5 II II has built in infrared (IR) and serial (RS-232) printing
capabilities when used with the optional portable thermal printer. The ALERT J5
II II
is the latest, most
advanced portable alcohol breath analysis system available with sophisticated
self contained computer digital electronics and menu driven options. The ALERT
J5 II II employs an advanced 32 bit A/D
converter microprocessor chip to instantly
display equivalent Blood Alcohol Content (BAC) in BAC%,
promilles, mg/L or mg%. CE marked.
|

|
INTENDED USE
The
ALERT J5 II II
Professional with printer option was developed and
manufactured to provide reliable, fast and highly accurate alcohol breath
analysis in a compact, portable and highly sophisticated menu driven electronic
device. Constructed from the highest quality components available, the
ALERT J5 II II
is intended for heavy commercial and law enforcement use
without compromising sensitivity and accuracy. Advanced power circuitry and
automated sample processing allows for up to 800 test procedures from two AA
alkaline batteries. The LCD digital display utilizes a user menu display system
to show internal self diagnostics and recalibration, test
progress, test results and memory recall of the previous ten test procedures.
The ALERT J5 II II incorporates onboard infrared and serial printing ports for
wireless or serial connectivity to the optional J5 thermal printer. User
menu display options and settings are hierarchical and similar to cellular phone
technology. The unit's microprocessor
automatically calculates the correct breath sample amount required and will
report a test error for under blows thus eliminating test subject sample
manipulation. Additionally, The ALERT J5 II model includes 5 specially designed
non-disposable one-way mouthpieces that prevent subject manipulation of breath
sampling by "blow back" and insuring proper breath sampling. Key on chip functions include self diagnostic checks for
calibration and accuracy, automatic recalibration, memory and test recall,
optional printer ports, sample volume to
alcohol content logarithm and real time clock self adjustment. The ALERT J4X is
intended for law enforcement field use and any other application, including
personal use, requiring rapid and evidentiary accurate alcohol breath analysis.
SPECIFICATIONS
The ALERT J5 II is easy to use,
with most test operations completely automated,
the ALERT J5 II
Professional is the model of choice for anyone serious about
alcohol use, abuse, detection and prevention. Highly sensitive, with a
detection range of .000 to .450 % BAC and field accuracy rate of
±
.005 @ .100 BAC, the ALERT J5 II complies with the testing standards for accuracy
established by the U.S. Department of Transportation and other regulating
authorities. The ALERT J5 II Professional model is also ideally suited for zero
tolerance alcohol testing programs where even the smallest amount of system
alcohol can be detected. Key specifications and features of the ALERT J5 II
Professional model are as follows:
• Alcohol specific,
platinum fuel cell (electrochemical)
• 32 bit microprocessor and converter
• Advanced
hierarchical menu driven LCD display
• Programmed internal self-diagnostics
• Automatic sensor calibration self adjusting
• Automatic sample volume detection
• Visual and Audible test prompts
• Onboard wireless infrared and serial printer ports
• 25 second maximum recovery time
• Detection Range .000 to .450 BAC
• Accuracy at ±
.005BAC to .100BAC and ± 5% above .100. |
 |
• Calculation logarithm %
BAC, promilles, mg/L, mg%
• Ambient Temperature Range
0-170 °F
(-20-70 °C)
• Breath Analysis time < 10 seconds
• Alcohol only, no response to ambient hydrocarbons
• Specially designed pressure regulating mouthpieces
• Memory recall last 10 tests
• Automatic calibration
• Optional Thermal Printer
• 800 test capacity on 2 AA alkaline batteries
• 25 second automatic power shut off
• One year factory warranty; parts and labor. |
Operation
is extremely fast, with an
average total test time of less than ten seconds for breath sampling, analysis
and display of results and a maximum
25 second recovery time between
tests. 32 bit microprocessor monitoring of breath flow, unique one-way flow
mouthpiece design, and an alcohol specific semi-conductor
fuel cell sensor that screens out other ambient hydrocarbons and ketones combine to automatically assure the accuracy of
alcohol breath testing and analysis.
One button operation, auto calibration, shirt-pocket size, and a host of
exclusive convenience features make the new
ALERT J5 II
Professional model stand alone in
field sobriety testing and analysis. The user
friendly, menu driven LCD display and high
powered internal software give the operator
visual error messages
minimizing operator error
and simplifying the test procedure.
This evidentiary quality breath analyzer is
recommended for "on the spot" evidentiary testing whenever alcohol consumption is suspected. The
ALERT J5 II should provide accurate readings indefinitely as long
as the microprocessor and sensor
cell are not internally damaged
and the unit is routinely recalibrated.
For additional information on technology method and specificity expectation see
Technology and Accuracy,
ALERT J5 II Manual
OPTIONAL PRINTER

The
ALERT J5 II has onboard infrared wireless (IR) and serial
(RS-232) port printing capabilities. The optional wireless Thermal Printer is
programmed to be easily interfaced with the ALERT J5 II allowing for hard
copy printing of test results when breath sample evidence is required.
Wireless data transmission from the ALERT J5 II unit to the printer is
possible using the J5's onboard infrared port capability. Test results can
be printed immediately to the printer or from the ALERT J5 II memory at a
later time. Printer
housing is constructed of commercial
grade, high impact ABS polymers with thermal transfer print head technology. The
Thermal Printer is available separately or in a bundled unit with the
ALERT J5 II Professional. The ALERT J5 II Professional with Printer bundle is a
complete evidentiary alcohol testing solution for commercial and law
enforcement applications.
AVAILABILITY
The
ALERT J5 II Professional
Breathalyzer is available as a standalone unit for
preliminary field breath sampling and analysis boxed with a comprehensive
operation manual and five (5) proprietary pressure flow mouthpieces. The
ALERT J5 II unit
must be used only with its specially designed mouthpiece or damage to the fuel
cell sensor could occur along with inaccurate test results. Failure to use
ALERT J5 II
mouthpieces in operation of the unit may void the manufacturers warranty. Extra mouthpieces are available in bulk separately. Mouthpieces are
high grade plastic and
disposable however they can be re-used if washed in hot water between uses in
personal use or lower volume testing applications. The ALERT J5 II is also
available with the wireless thermal printer as a bundled option for evidentiary printing
of hardcopy test results.
Description
|
Packaging
|
Sale Unit
|
Cost
|
|
ALERT J5 II
Professional Breathalyzer Only
|
Boxed
|
One (1) Unit
|
$825.00
|
 |
|
|
Three (3) Units
|
$2,370.00
|
 |
ALERT J5 II Professional Breathalyzer w/Thermal
Printer |
Bundled |
One (1) Unit
|
$1,100.00
|

|
|
|
Three (3) Units |
$3,000.00 |
 |
ALERT J5 II Mouthpieces Only
|
Poly Bagged |
Twenty five (25) each |
$12.00 |
 |
|
|
One Hundred (100) each
|
$39.00 |
 |
*If the
order buttons are absent or inoperable, please use the
pricing overview page to order. |
View ALERT J5 II Operation Manual
For
purchases of Five (5) units or more please contact us by e-mail
Customer Service
*Note: The ALERT J5 II cannot be
shipped to a PO Box address


|
